MCP Setup¶

This guide demonstrates how to integrate Model Context Protocol (MCP) servers with your agents using the Idun platform's web interface. We'll use the Fetch MCP server from Model Context Protocol with an ADK agent.

Overview¶

MCP (Model Context Protocol) extends agent capabilities by providing external tools through a standardized interface. The Fetch MCP server allows your agent to retrieve and process web content, enabling capabilities like:

Fetching content from URLs
Processing web pages
Extracting information from websites
Summarizing web content

What You'll Learn

By the end of this guide, you'll have a fully functional ADK agent with web fetching capabilities, able to retrieve and analyze content from any URL through a simple chat interface.

Prerequisites¶

Before You Begin

Ensure all prerequisites are met before proceeding with the setup.

Docker Desktop¶

Download and install from docker.com

docker --version

Fetch MCP Image¶

Pull the official Fetch MCP server image:

docker pull mcp/fetch

Image Ready

Once pulled, the image will be available in Docker Desktop's Images section.

Google Vertex AI Credentials¶

The ADK agent requires Google Cloud credentials. Choose one authentication method:

Service Account KeyApplication Default Credentials

export GOOGLE_APPLICATION_CREDENTIALS="/path/to/service-account-key.json"

gcloud auth application-default login

Idun Platform¶

Install the Idun Agent Engine:

pip install idun-agent-engine

Manager Service

Ensure the Manager service is running and accessible at http://localhost:8080 (or your configured URL).

Step 1: Clone the Demo ADK Agent¶

Clone the demo ADK agent repository from GitHub:

git clone https://github.com/Idun-Group/demo-adk-idun-agent.git
cd demo-adk-idun-agent

Repository Contents

This repository contains a fully configured ADK agent that we'll enhance with MCP capabilities.

Step 2: Configure Docker Desktop¶

Open Docker Desktop and verify the following:

Docker Desktop is running
The mcp/fetch image appears in the Images section
MCP extension is enabled (if available)

Docker Ready

With Docker Desktop running and the image available, you're ready to configure the MCP server.

Step 3: Configure MCP in Manager UI¶

Access the Idun Manager web interface at http://localhost:8080

Create Your Agent¶

Navigate to Agents → Create Agent

Fill in the agent configuration:

Setting	Value
Agent Name	`ADK Agent with Fetch MCP`
Agent Type	`ADK`
Session Service	`in_memory`
Memory Service	`in_memory`
Agent Code Path	`./agent.py:agent`

Add MCP Server¶

Scroll to the MCP Servers section and click Add MCP Server

Configure the Fetch MCP server:

Field	Value	Description
Name	`fetch`	Identifier for this MCP server
Transport	`stdio`	Communication via standard I/O
Command	`docker`	Docker CLI command
Args	`["run", "-i", "--rm", "mcp/fetch"]`	Docker run arguments as JSON array

Args Format

The Args field must be a valid JSON array. Copy the entire value including brackets:

["run", "-i", "--rm", "mcp/fetch"]

What These Args Do

run - Execute a new container
-i - Interactive mode (keeps STDIN open for communication)
--rm - Automatically remove container when it stops
mcp/fetch - The Docker image to run

Save Your Configuration¶

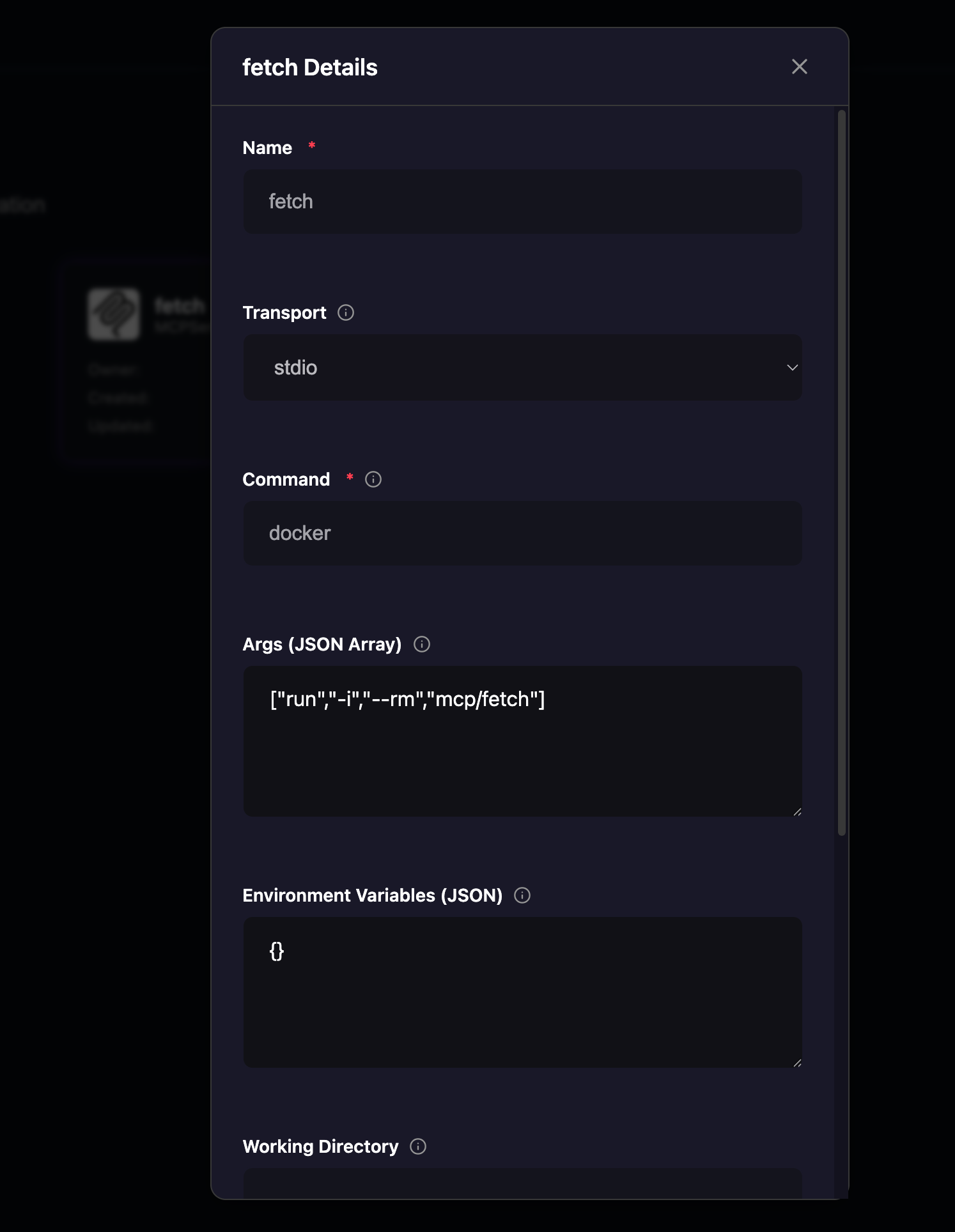

MCP Configuration Form

The MCP configuration form showing stdio transport, docker command, and args as a JSON array

Click Save to create the agent with MCP integration.

Configuration Saved

Your agent is now configured with the Fetch MCP server and ready to launch.

Step 4: Verify Credentials¶

Before launching, verify your Google Cloud credentials:

# Check credentials path
echo $GOOGLE_APPLICATION_CREDENTIALS

# Test credentials
gcloud auth application-default print-access-token

Credentials Required

The ADK agent cannot initialize without valid Google Cloud credentials. Ensure this step succeeds before proceeding.

If credentials aren't configured:

export GOOGLE_APPLICATION_CREDENTIALS="/path/to/your-service-account-key.json"

Step 5: Launch Your Agent¶

Navigate to the agent directory and start the engine:

cd demo-adk-idun-agent
export IDUN_MANAGER_HOST="http://localhost:8080"
export IDUN_AGENT_API_KEY="YOUR_AGENT_API_KEY"

idun agent serve --source manager

Initialization Process¶

The engine will perform the following steps:

Load Configuration - Fetch agent config from Manager API
Initialize ADK Agent - Set up session and memory services
Start MCP Server - Launch Fetch MCP as Docker container
Register Tools - Make fetch tool available to agent
Start API Server - Serve at http://localhost:8000

Agent Running

When you see "Uvicorn running on http://localhost:8000", your agent is ready to accept requests.

Step 6: Test MCP Integration¶

Access API Integration¶

In the Manager UI:

Navigate to your agent in the Agents list
Click on the API Integration tab
You'll see a chat interface

Interactive Testing

The API Integration page provides a real-time chat interface for testing your agent without writing any code.

Test Queries¶

Try these example queries in the chat interface:

Example 1: Company Information

Give me the information on this website: https://www.idun-group.com/idun-agent-platform

Example 2: News Summary

Go to https://news.ycombinator.com and summarize the top 3 stories

Example 3: Trending Repositories

Fetch https://github.com/trending and list the trending repositories

How It Works¶

When you send a query:

Agent receives your message
Recognizes it needs web content
Invokes the Fetch MCP tool
Docker container retrieves URL content
Agent processes and responds with analyzed information

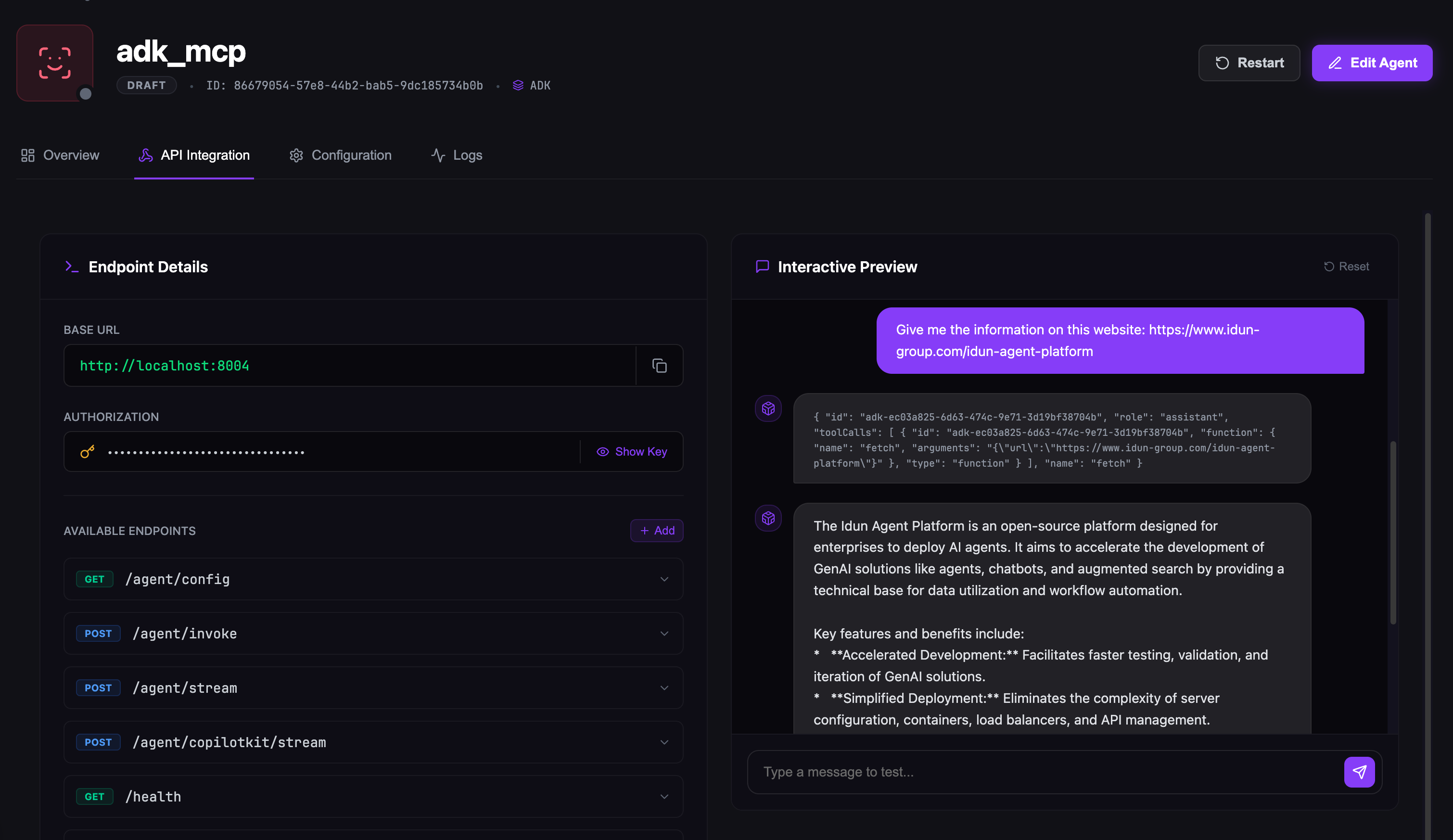

MCP Test Result

The chat interface showing successful use of the Fetch MCP tool to retrieve and analyze web content

MCP Working

If the agent successfully fetches and analyzes web content, your MCP integration is working correctly.

Verify MCP Server¶

Check Docker Container¶

View running MCP containers:

docker ps | grep mcp/fetch

View Logs¶

Check MCP server logs for debugging:

docker logs $(docker ps -q --filter ancestor=mcp/fetch)

Troubleshooting

If the agent isn't using the fetch tool, check these logs first for connection or execution errors.

Advanced Configuration¶

Multiple MCP Servers¶

Enhance your agent with additional MCP servers by adding more configurations in the Manager UI.

Filesystem Access¶

Field	Value
Name	`filesystem`
Transport	`stdio`
Command	`npx`
Args	`["-y", "@modelcontextprotocol/server-filesystem", "/allowed/path"]`

Use Case

Allows the agent to read, write, and manipulate files within specified directories.

Custom MCP Server¶

Field	Value
Name	`custom`
Transport	`stdio`
Command	`docker`
Args	`["run", "-i", "--rm", "your-registry/your-mcp:latest"]`

Use Case

Deploy your own custom MCP servers for specialized functionality like database access, API integrations, or internal tools.

Troubleshooting¶

Docker Issues¶

MCP Server Fails to Connect

Symptoms: Agent starts but MCP tools aren't available

Solutions:

Verify Docker Desktop is running: docker info
Check image exists: docker images | grep mcp/fetch
Test container manually: docker run -i --rm mcp/fetch
Review Docker Desktop logs

Authentication Issues¶

Vertex AI Authentication Failed

Symptoms: Agent fails to initialize with authentication errors

Solutions:

Verify credentials: echo $GOOGLE_APPLICATION_CREDENTIALS
Test credentials: gcloud auth application-default print-access-token
Re-authenticate: gcloud auth application-default login
Ensure service account has required permissions

MCP Tool Not Working¶

Agent Doesn't Use Fetch Tool

Symptoms: Agent responds but doesn't fetch web content

Solutions:

Check Docker container is running: docker ps | grep mcp/fetch
Review MCP server logs: docker logs <container_id>
Try explicit query: "Use the fetch tool to get https://example.com"
Restart the agent
Verify MCP config saved correctly in Manager UI

Configuration Errors¶

Args Format Invalid

Symptoms: "Invalid args format" error when saving

Solution: Ensure args is a properly formatted JSON array

✅ Correct:

["run", "-i", "--rm", "mcp/fetch"]

❌ Incorrect:

run -i --rm mcp/fetch

❌ Incorrect:

["run -i --rm mcp/fetch"]

Best Practices¶

Naming Convention

Use descriptive, lowercase names for MCP servers: fetch, filesystem, database

Incremental Testing

Add one MCP server at a time. Test functionality before adding additional servers.

Monitor Performance

Use observability features to track MCP server latency and identify performance bottlenecks.

Secure Credentials

Never hardcode sensitive information in MCP configurations. Always use environment variables.

Resource Limits

In production environments, set Docker resource constraints to prevent runaway resource usage:

["run", "-i", "--rm", "--memory=512m", "--cpus=0.5", "mcp/fetch"]

Logging

Configure Docker logging for better observability:

["run", "-i", "--rm", "--log-driver=json-file", "--log-opt=max-size=10m", "mcp/fetch"]
